SDC-210 Quadruped Robot Data Acquisition Backpack
Product Description
Highly integrated intelligent expansion backpack for quadruped robots — 360° panoramic vision, IR night vision, voice interaction, 4G/WiFi hotspot and cloud AI in one module. Model SDC-210.
Product Features
- 360° panoramic vision + IR night vision
- 4G/WiFi hotspot with cloud AI ready
- Rail mount, no robot modification
- IP55 rated, -15℃~+55℃ operation
The SDC-210 quadruped robot data acquisition backpack is a highly integrated intelligent expansion module for all types of legged robots. With a lightweight backpack design, easy installation and broad compatibility, it requires no complex modification to equip robots with full-scene perception, voice interaction, SOS, emergency stop control, network coverage and cloud AI computing — enabling cost-effective intelligent upgrades.
Integrated environmental sensing hardware includes 4 low-light cameras plus 1 infrared night-vision camera for 360° panoramic imaging, together with high-precision temperature and humidity sensors for real-time environmental monitoring.
Built-in bidirectional voice interaction, independent 4G & WiFi with self-hosted hotspot, standardized cloud interfaces, and edge-cloud collaborative algorithms support target detection, anomaly assessment, path planning and risk alerting.

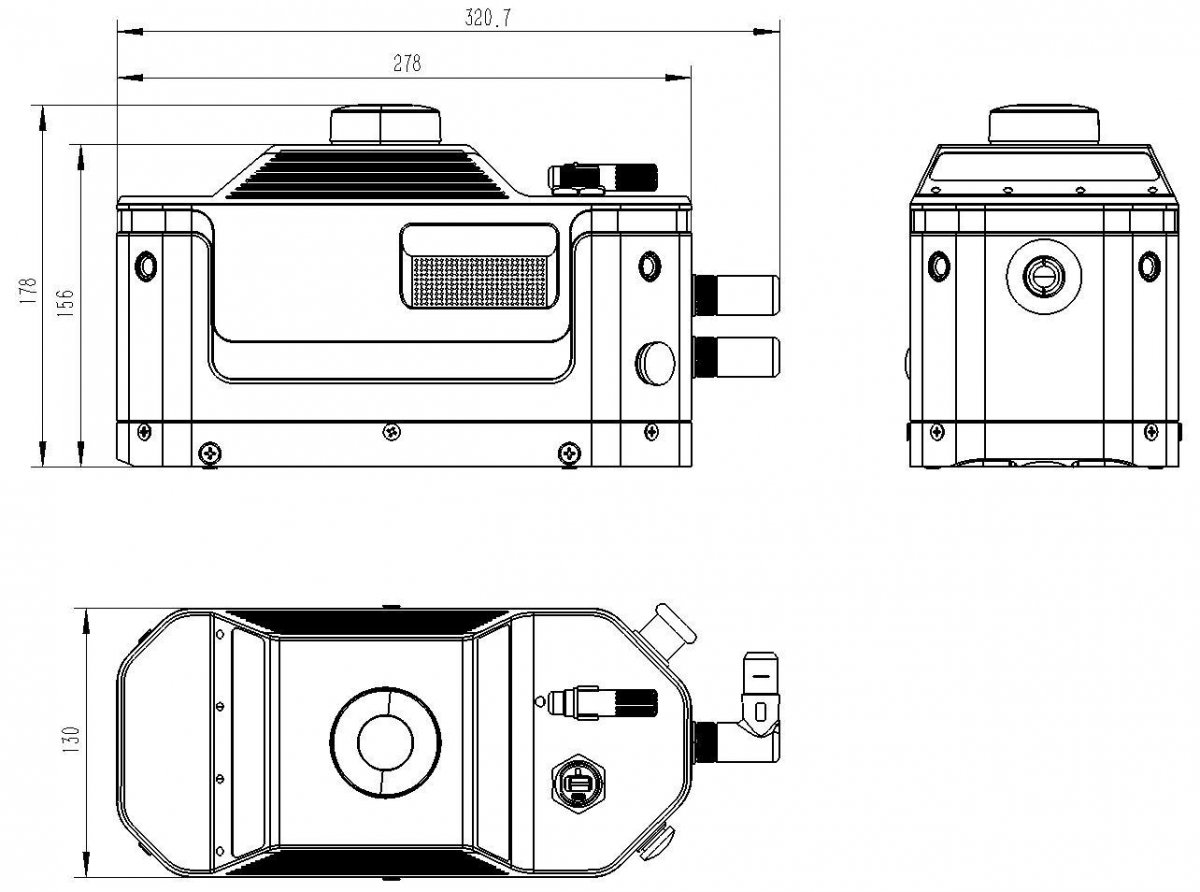

Product Dimensions

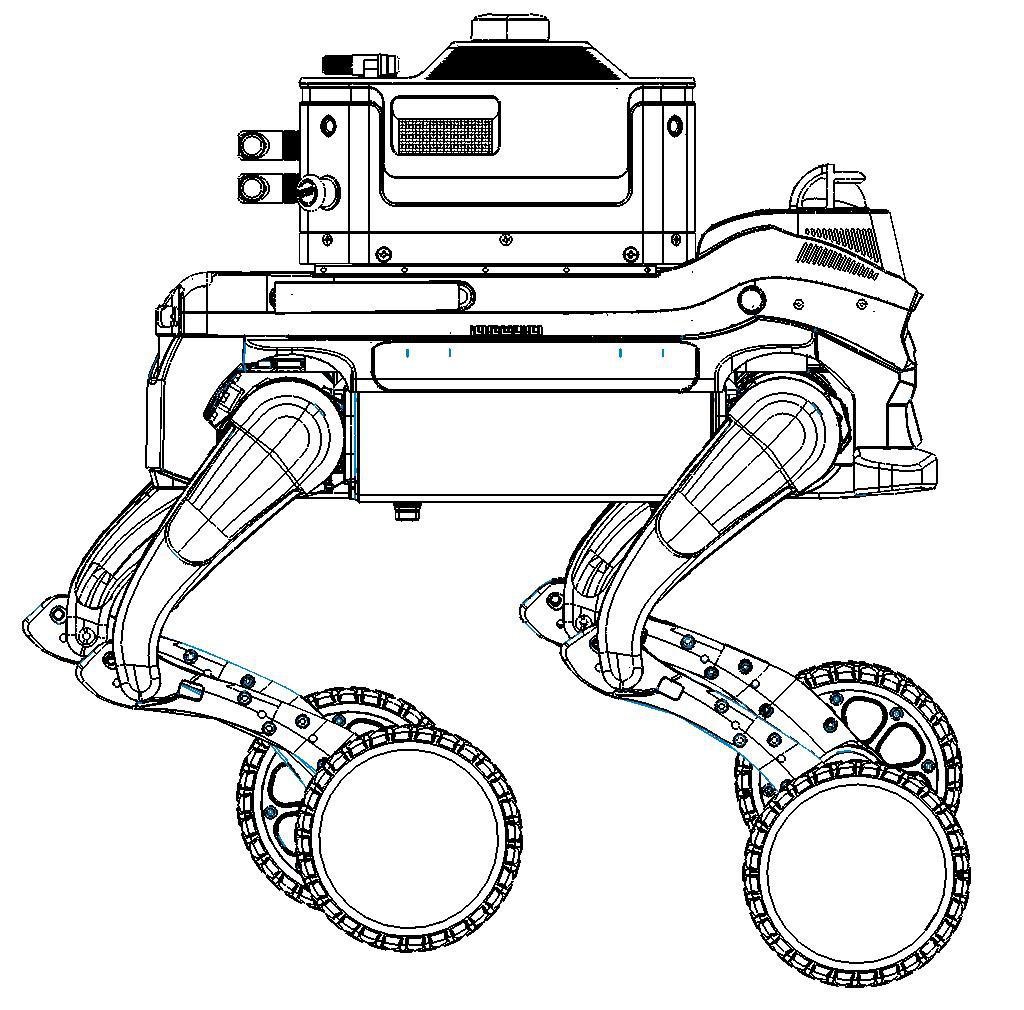

Installation
Technical Specifications
| Product Name | Intelligent Robot Dog Expansion Backpack |
|---|---|
| Model | SDC-210 |
| Material | High-strength engineering plastic / aluminum alloy chassis |
| Dimensions | 320.7mm × 178mm × 130mm |
| Weight | 2200g (lightweight for small/medium quadruped robots) |
| Mounting | Bottom bolt-on rail mount, no drilling required |
| Processor | 8-core 64-bit, 6TOPS AI compute (INT4/INT8/FP16) |
| Memory / Storage | 4G LPDDR4 (customizable) / 128G SSD |
| Vision | 4× 720P@30fps low-light cameras + 1× IR thermal camera, 360° stitching |
| Environment Sensor | Temperature -40℃~+150℃, Humidity 0–100% RH |
| Voice | Bidirectional near-field, 4-mic array, 0.5–3m pickup |
| Network | 2.4G/5G WiFi + 4/5G IoT, WiFi hotspot, TCP/UDP/HTTP/MQTT |
| Power | DC 9V–36V, ≤49W static / ≤60W full load |
| Operating Temp | -15℃~+55℃ |
| Protection | IP55 |
